3. How to find a stimulus#
stimupy offers many ways to discover stimulus functions –
whether you’re exploring what’s available or searching for a specific stimulus.
This guide covers both discovery using (this) online documentation
and from within Python discovery methods.
3.1. In this documentation#
3.1.1. Search bar#
If you’re looking for a specific function
or want to check whether stimupy includes a certain stimulus (e.g., Gabors),
use the search bar on any of these pages.
It will return all relevant pages, examples, and API references for your search term.
3.1.2. Overviews of all modules and functions#
You can browse a complete overview of submodules and functions in the stimupy API reference.
This list mirrors stimupy’s modular structure and contains:
All submodules
All functions (with documentation)
Direct links to their definitions
For a more visual approach, explore our interactive demos. These show both high-level and low-level modules, and how they can be used.
3.1.3. Visual overview (coming soon)#
A quick, visual overview of available stimuli will be added in a future update.
3.2. From within Python#
If you’re already working in Python
and simply need to refresh your memory about a submodule or function name,
stimupy provides built-in tools to help.
3.2.1. Visual overviews#
Both stimupy.components and stimupy.stimuli include a plot_overview() function
that displays an example of each available stimulus.

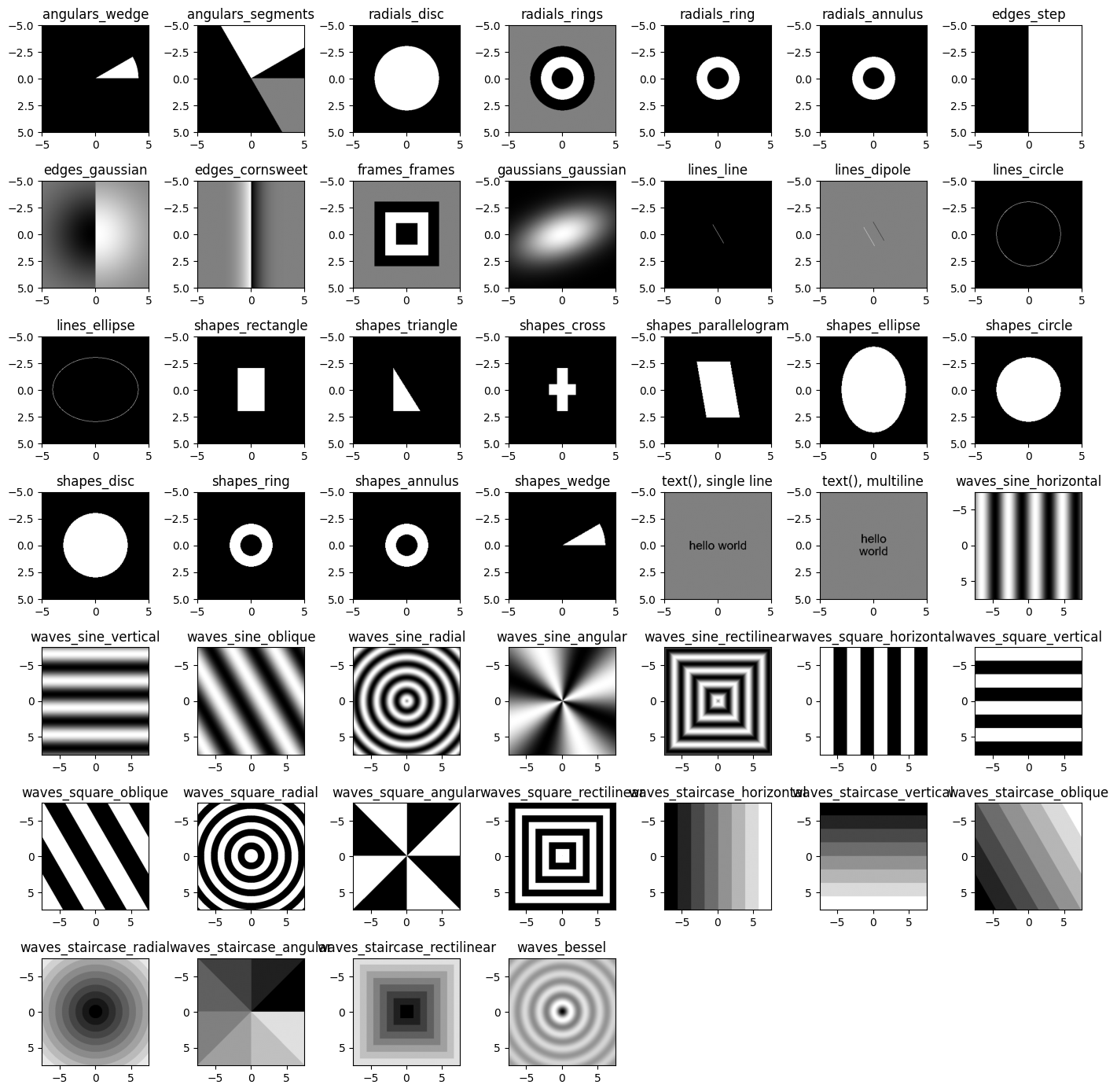

Example for components:
from stimupy import components
components.plot_overview()

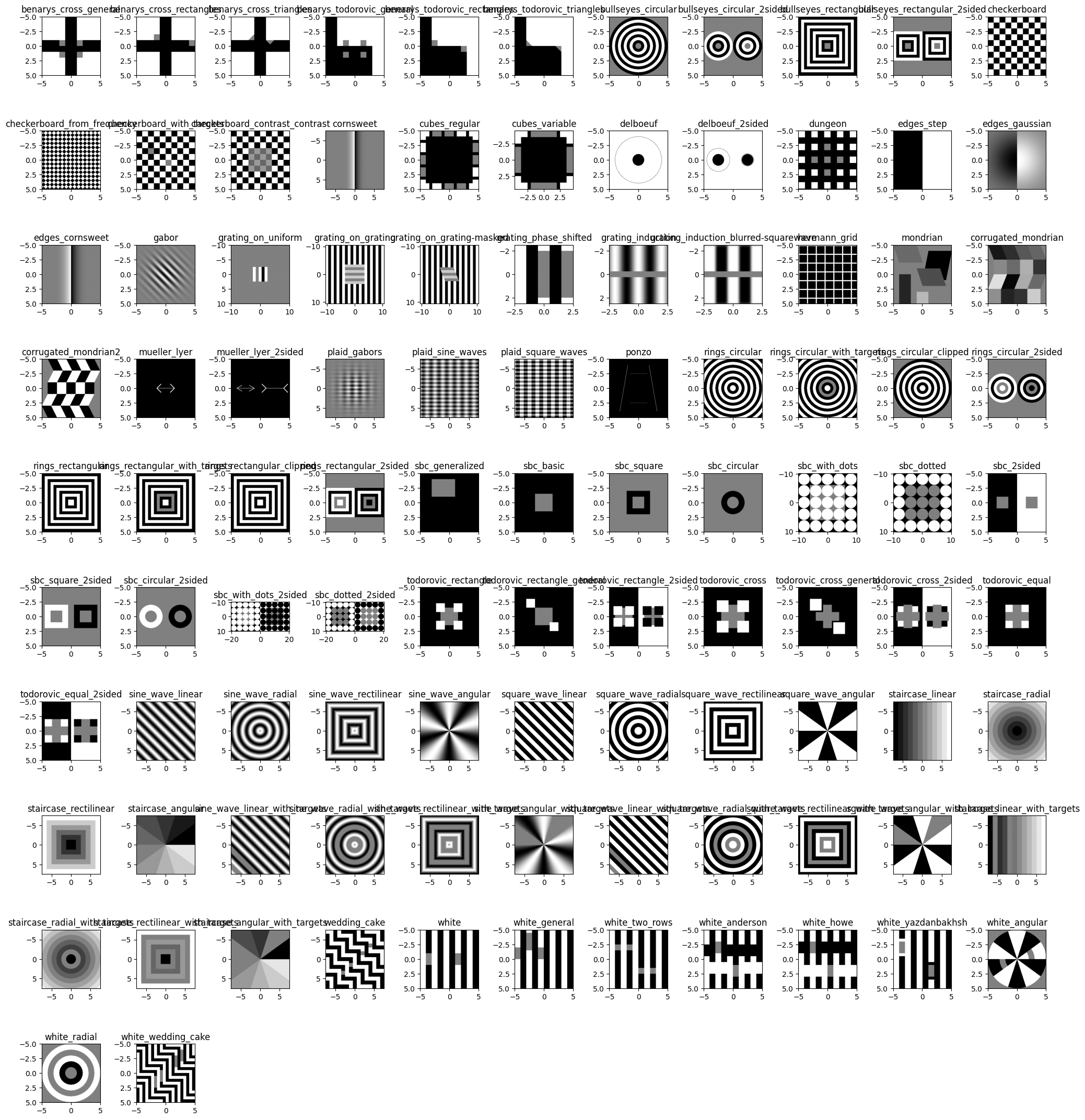

Example for stimuli:
from stimupy import stimuli
stimuli.plot_overview()

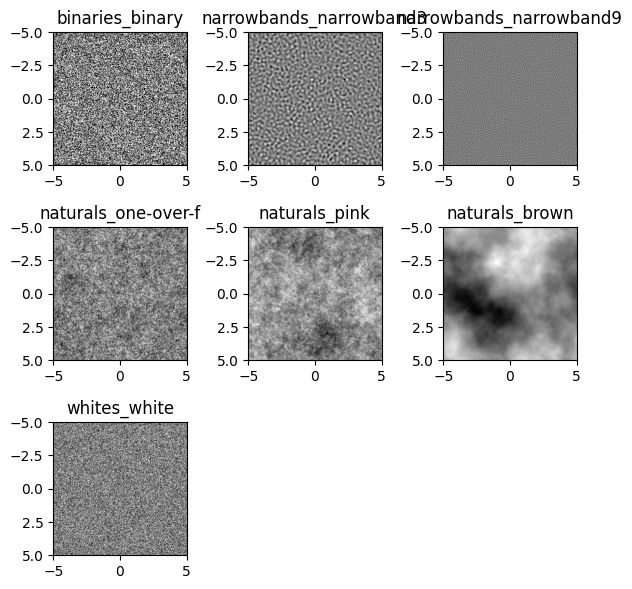

Example for noises:
from stimupy import noises
noises.plot_overview()
3.2.2. Autocompletion in interactive interpreters#
Most consoles and IDEs that you may use (IPython, Jupyter Notebook, Spyder, VSCode, …)
should be able to autocomplete while typing, usually using
>>> stimupy.<TAB>
3.2.3. Using help() to list contents#
You can use Python’s built-in help() function
to inspect submodules, functions, and their documentation.
For modules, this will also list all its submodules and functions.
Top-level overview:
import stimupy
help(stimupy)
Help on package stimupy:
NAME
stimupy
PACKAGE CONTENTS
_docs (package)
components (package)
logos
noises (package)
papers (package)
stimuli (package)
utils (package)
SUBMODULES
benarys
bullseyes
checkerboards
cornsweets
cubes
delboeufs
dungeons
edges
gabors
gratings
hermanns
mondrians
mueller_lyers
plaids
ponzos
rings
sbcs
todorovics
waves
wedding_cakes
whites
FUNCTIONS
mask_targets(element_mask, target_indices)
Indicate elements as targets
Creates a new target_mask from a mask of elements (e.g., grating bars, rings, frames, etc.),
by indexing these elements.
Parameters
----------
element_mask : numpy.ndarray
mask with integer values for different elements / regions in a stimulus
target_indices : Sequence[int] or int
index or indices of elements to be designated as targets.
Index 0 should always refer to background region.
Indices can be negative, which results in "counting backwards"
from the highest index in element_mask.
Returns
-------
numpy.ndarray
target mask, with integer values indicating target regions,
in order that they appear in target_indices
Raises
------
ValueError
if a target_idx is greater than any value in the element_mask
overview(skip=False)
Generate example stimuli from this module
Returns
-------
dict[str, dict]
Dict mapping names to individual stimulus dicts
place_targets(stim, element_mask_key, target_indices, intensity_target=0.5)
Place targets in stimulus
Turns image regions/elements defined by element_mask_key
and indicated by target_indices, into targets.
Targets are defined in a new target_mask, and drawn into image with intensity_target.
Parameters
----------
stim : dict[str, Any]
stimulus dictionary, with at least an "img" key, and mask indicated by element_mask_key
element_mask_key : str
key of the mask in stim-dict indicating image "elements"/regions
target_indices : Sequence[int] or int
index or indices of elements to be designated as targets
intensity_target : float, optional
intensity value for target, by default 0.5
Returns
-------
dict[str, Any]
dict with the stimulus (key: "img") with targets placed,
mask with integer index for the target (key: "target_mask")
See also
--------
mask_targets, draw_regions
plot_overview(mask=False, save=None, units='deg')
Plot overview of examples in this module (and submodules)
Parameters
----------
mask : bool or str, optional
If True, plot mask on top of stimulus image (default: False).
If string is provided, plot this key from stimulus dictionary as mask
save : None or str, optional
If None (default), do not save the plot.
If string is provided, save plot under this name.
units : "px", "deg" (default), or str
what units to put on the axes, by default degrees visual angle ("deg").
If a str other than "deg"(/"degrees") or "px"(/"pix"/"pixels") is passed,
it must be the key to a tuple in stim
DATA
__all__ = ['components', 'noises', 'utils', 'mask_targets', 'place_tar...
VERSION
1.2.0
FILE
/home/joris/Research/stimupy/stimupy/__init__.py
High-level submodule:
from stimupy import components
help(components)
Help on package stimupy.components in stimupy:
NAME
stimupy.components
PACKAGE CONTENTS
angulars
edges
frames
gaussians
lines
radials
shapes
texts
waves
FUNCTIONS
combine_masks(*masks)
Combines several masks into a singular mask
Increments mask-indices, such that the resulting mask contains consecutive integer
indices.
Masks are combined in order.
Parameters
----------
mask_1, mask_2, ... : numpy.ndarray
Masks to be combined
Returns
-------
numpy.ndarray
Combined mask, where integer indices are in order of the input masks.
Raises
------
ValueError
if masks do not all have the same shape (in pixels)
ValueError
if multiple masks index the same pixel
draw_regions(mask, intensities, intensity_background=0.5)
Draw regions defined by mask, with given intensities
Parameters
----------
mask : numpy.ndarray
image-array with integer-indices for each region to draw
intensities : Sequence[float, ...]
intensity value for each masked region.
Can specify as many intensities as number of masked regions;
If fewer intensities are passed than masked regions, cycles through intensities
intensity_background : float, optional
intensity value of background, by default 0.5
Returns
-------
numpy.ndarray
image-array, same shape as mask, with intensity assigned to each masked region
image_base(visual_size=None, shape=None, ppd=None, rotation=0.0, origin='mean')
Create coordinate-arrays to serve as image base for drawing
Parameters
----------
visual_size : Sequence[Number, Number], Number, or None (default)
visual size [height, width] of image, in degrees
ppd : Sequence[Number, Number], Number, or None (default)
pixels per degree [vertical, horizontal]
shape : Sequence[Number, Number], Number, or None (default)
shape [height, width] of image, in pixels
rotation : float, optional
rotation (in degrees) from 3 o'clock, counterclockwise, by default 0.0
origin : "corner", "mean" or "center"
if "corner": set origin to upper left corner
if "mean": set origin to hypothetical image center (default)
if "center": set origin to real center (closest existing value to mean)
Returns
-------
dict[str, Any]
dict with keys:
"visual_size", "ppd" : resolved from input arguments,
"x", "y" : single axes
"horizontal", "vertical" : numpy.ndarray of shape, with distance from origin,
in deg. visual angle, at each pixel
"oblique", "oblique_y" : numpy.ndarray of shape, with oblique distances from origin,
in deg. visual angle, at each pixel
"radial" : numpyn.ndarray of shape, with radius from origin,
in deg. visual angle, at each pixel
"angular" : numpy.ndarray of shape, with angle relative to 3 o'clock,
in rad, at each pixel
"rectilinear" : numpy.ndarray of shape, with rectilinear/cityblock/Manhattan distance from origin,
in deg. visual angle, at each pixel
mask_regions(
distance_metric,
edges,
shape=None,
visual_size=None,
ppd=None,
rotation=0.0,
origin=None
)
Generate mask for regions in image
Regions are defined by `edges` along a `distance_metric`.
Regions will be masked consecutively, from `origin` outwards,
such that each `edge` is the upper-limit of a region.
Parameters
----------
distance_metric : any of keys in stimupy.components.image_base()
which distance metric to mask over
edges : Sequence[Number]
upper-limit of each consecutive region
visual_size : Sequence[Number, Number], Number, or None (default)
visual size [height, width] of image, in degrees
ppd : Sequence[Number, Number], Number, or None (default)
pixels per degree [vertical, horizontal]
shape : Sequence[Number, Number], Number, or None (default)
shape [height, width] of image, in pixels
rotation : float, optional
rotation (in degrees) from 3 o'clock, counterclockwise, by default 0.0
origin : "corner", "mean" or "center"
if "corner": set origin to upper left corner
if "mean": set origin to hypothetical image center (default)
if "center": set origin to real center (closest existing value to mean)
Returns
-------
dict[str, Any]
mask with integer index for each angular segment (key: "mask"),
and additional keys containing stimulus parameters
overview(skip=False)
Generate example stimuli from this module
Returns
-------
dict[str, dict]
Dict mapping names to individual stimulus dicts
plot_overview(mask=False, save=None, units='deg')
Plot overview of examples in this module (and submodules)
Parameters
----------
mask : bool or str, optional
If True, plot mask on top of stimulus image (default: False).
If string is provided, plot this key from stimulus dictionary as mask
save : None or str, optional
If None (default), do not save the plot.
If string is provided, save plot under this name.
units : "px", "deg" (default), or str
what units to put on the axes, by default degrees visual angle ("deg").
If a str other than "deg"(/"degrees") or "px"(/"pix"/"pixels") is passed,
it must be the key to a tuple in stim
DATA
__all__ = ['overview', 'plot_overview', 'image_base', 'draw_regions', ...
FILE
/home/joris/Research/stimupy/stimupy/components/__init__.py
Low-level submodule:
from stimupy.components import shapes
help(shapes)
Help on module stimupy.components.shapes in stimupy.components:
NAME
stimupy.components.shapes
FUNCTIONS
annulus = ring(
visual_size=None,
ppd=None,
shape=None,
radii=None,
intensity_ring=1.0,
intensity_background=0.0,
origin='mean'
)
Draw a ring (annulus)
Parameters
----------
visual_size : Sequence[Number, Number], Number, or None (default)
visual size [height, width] of image, in degrees
ppd : Sequence[Number, Number], Number, or None (default)
pixels per degree [vertical, horizontal]
shape : Sequence[Number, Number], Number, or None (default)
shape [height, width] of image, in pixels
radii : Sequence[Number, Number]
inner and outer radius of ring in degree visual angle
intensity_ring : Number, optional
intensity value of ring, by default 1.0
intensity_background : float, optional
intensity value of background, by default 0.0
origin : "corner", "mean" or "center", optional
if "corner": set origin to upper left corner
if "mean": set origin to hypothetical image center (default)
if "center": set origin to real center (closest existing value to mean)
Returns
-------
dict[str, Any]
dict with the stimulus (key: "img"),
mask with integer index for each ring (key: "ring_mask"),
and additional keys containing stimulus parameters
Raises
------
ValueError
if passed in less/more than 2 radii (inner, outer)
ValueError
if passed in less/more than 1 intensity
circle(
visual_size=None,
ppd=None,
shape=None,
radius=None,
intensity_circle=1.0,
intensity_background=0.0,
origin='mean',
restrict_size=True
)
Draw an ellipse
Parameters
----------
visual_size : Sequence[Number, Number], Number, or None (default)
visual size [height, width] of image, in degrees visual angle
ppd : Sequence[Number, Number], Number, or None (default)
pixels per degree [vertical, horizontal]
shape : Sequence[Number, Number], Number, or None (default)
shape [height, width] of image, in pixels
radius : Number or None (default)
circle radius in degrees visual angle
intensity_circle : float, optional
intensity value for circle, by default 1.0
intensity_background : float, optional
intensity value of background, by default 0.0
origin : "corner", "mean" or "center"
if "corner": set origin to upper left corner
if "mean": set origin to hypothetical image center (default)
if "center": set origin to real center (closest existing value to mean)
restrict_size : Bool
if False, allow circle to reach beyond image size (default: True)
Returns
----------
dict[str, Any]
dict with the stimulus (key: "img"),
mask with integer index for the shape (key: "circle_mask"),
and additional keys containing stimulus parameters
cross(
visual_size=None,
ppd=None,
shape=None,
cross_size=None,
cross_thickness=None,
cross_arm_ratios=(1.0, 1.0),
intensity_cross=1.0,
intensity_background=0.0,
rotation=0.0
)
Draw a cross
Parameters
----------
visual_size : Sequence[Number, Number], Number, or None (default)
visual size [height, width] of image, in degrees visual angle
ppd : Sequence[Number, Number], Number, or None (default)
pixels per degree [vertical, horizontal]
shape : Sequence[Number, Number], Number, or None (default)
shape [height, width] of image, in pixels
cross_size : Number, Sequence[Number, Number]
cross size [height, width], in degrees visual angle
cross_thickness : Number, Sequence[Number, Number]
thickness of cross in degrees visual angle
cross_arm_ratios : float or (float, float)
ratio used to create arms (up-down, left-right)
intensity_cross: float, optional
intensity value for cross, by default 1.0
intensity_background : float, optional
intensity value of background, by default 0.0
rotation : float, optional
rotation (in degrees), counterclockwise, by default 0.0
Returns
-------
dict[str, Any]
dict with the stimulus (key: "img"),
mask with integer index for the shape (key: "cross_mask"),
and additional keys containing stimulus parameters
disc(
visual_size=None,
ppd=None,
shape=None,
radius=None,
intensity_disc=1.0,
intensity_background=0.0,
origin='mean'
)
Draw a central disc
Essentially, `dics(radius)` is an alias for `ring(radii=[0, radius])`
Parameters
----------
visual_size : Sequence[Number, Number], Number, or None (default)
visual size [height, width] of image, in degrees
ppd : Sequence[Number, Number], Number, or None (default)
pixels per degree [vertical, horizontal]
shape : Sequence[Number, Number], Number, or None (default)
shape [height, width] of image, in pixels
radius : Number
outer radius of disc in degree visual angle
intensity_disc : Number, optional
intensity value of disc, by default 1.0
intensity_background : float, optional
intensity value of background, by default 0.0
origin : "corner", "mean" or "center", optional
if "corner": set origin to upper left corner
if "mean": set origin to hypothetical image center (default)
if "center": set origin to real center (closest existing value to mean)
Returns
-------
dict[str, Any]
dict with the stimulus (key: "img"),
mask with integer index for each ring (key: "ring_mask"),
and additional keys containing stimulus parameters
ellipse(
visual_size=None,
ppd=None,
shape=None,
radius=None,
intensity_ellipse=1.0,
intensity_background=0.0,
rotation=0.0,
origin='mean',
restrict_size=True
)
Draw an ellipse
Parameters
----------
visual_size : Sequence[Number, Number], Number, or None (default)
visual size [height, width] of image, in degrees visual angle
ppd : Sequence[Number, Number], Number, or None (default)
pixels per degree [vertical, horizontal]
shape : Sequence[Number, Number], Number, or None (default)
shape [height, width] of image, in pixels
radius : Sequence[Number, Number], Number or None (default)
ellipse radius [ry, rx] in degrees visual angle
intensity_ellipse : float, optional
intensity value for ellipse, by default 1.0
intensity_background : float, optional
intensity value of background, by default 0.0
rotation : float, optional
rotation (in degrees), counterclockwise, by default 0.0
origin : "corner", "mean" or "center"
if "corner": set origin to upper left corner
if "mean": set origin to hypothetical image center (default)
if "center": set origin to real center (closest existing value to mean)
restrict_size : Bool
if False, allow ellipse to reach beyond image size (default: True)
Returns
-------
dict[str, Any]
dict with the stimulus (key: "img"),
mask with integer index for the shape (key: "ellipse_mask"),
and additional keys containing stimulus parameters
parallelogram(
visual_size=None,
ppd=None,
shape=None,
parallelogram_size=None,
intensity_parallelogram=1.0,
intensity_background=0.0,
rotation=0.0
)
Draw a parallelogram
Parameters
----------
visual_size : Sequence[Number, Number], Number, or None (default)
visual size [height, width] of image, in degrees visual angle
ppd : Sequence[Number, Number], Number, or None (default)
pixels per degree [vertical, horizontal]
shape : Sequence[Number, Number], Number, or None (default)
shape [height, width] of image, in pixels
parallelogram_size : [Number, Number, Number], [Number, Number], Number or None (default)
parallelogram size [height, width, depth], in degrees visual angle
intensity_parallelogram : float, optional
intensity value for parallelogram, by default 1.0
intensity_background : float, optional
intensity value of background, by default 0.0
rotation : float, optional
rotation (in degrees), counterclockwise, by default 0.0
Returns
-------
dict[str, Any]
dict with the stimulus (key: "img"),
mask with integer index for the shape (key: "parallelogram_mask"),
and additional keys containing stimulus parameters
rectangle(
visual_size=None,
ppd=None,
shape=None,
rectangle_size=None,
rectangle_position=None,
intensity_rectangle=1.0,
intensity_background=0.0,
rotation=0.0
)
Draw a rectangle
Parameters
----------
visual_size : Sequence[Number, Number], Number, or None (default)
visual size [height, width] of image, in degrees visual angle
ppd : Sequence[Number, Number], Number, or None (default)
pixels per degree [vertical, horizontal]
shape : Sequence[Number, Number], Number, or None (default)
shape [height, width] of image, in pixels
rectangle_size : Number, Sequence[Number, Number]
rectangle size [height, width], in degrees visual angle
rectangle_position : Number, Sequence[Number, Number], or None (default)
position of the rectangle, in degrees visual angle.
If None, rectangle will be placed in center of image.
intensity_rectangle : float, optional
intensity value for rectangle, by default 1.0
intensity_background : float, optional
intensity value of background, by default 0.0
rotation : float, optional
rotation (in degrees), counterclockwise, by default 0.0 (horizontal)
Returns
-------
dict[str, Any]
dict with the stimulus (key: "img"),
mask with integer index for the shape (key: "rectangle_mask"),
and additional keys containing stimulus parameters
ring(
visual_size=None,
ppd=None,
shape=None,
radii=None,
intensity_ring=1.0,
intensity_background=0.0,
origin='mean'
)
Draw a ring (annulus)
Parameters
----------
visual_size : Sequence[Number, Number], Number, or None (default)
visual size [height, width] of image, in degrees
ppd : Sequence[Number, Number], Number, or None (default)
pixels per degree [vertical, horizontal]
shape : Sequence[Number, Number], Number, or None (default)
shape [height, width] of image, in pixels
radii : Sequence[Number, Number]
inner and outer radius of ring in degree visual angle
intensity_ring : Number, optional
intensity value of ring, by default 1.0
intensity_background : float, optional
intensity value of background, by default 0.0
origin : "corner", "mean" or "center", optional
if "corner": set origin to upper left corner
if "mean": set origin to hypothetical image center (default)
if "center": set origin to real center (closest existing value to mean)
Returns
-------
dict[str, Any]
dict with the stimulus (key: "img"),
mask with integer index for each ring (key: "ring_mask"),
and additional keys containing stimulus parameters
Raises
------
ValueError
if passed in less/more than 2 radii (inner, outer)
ValueError
if passed in less/more than 1 intensity
triangle(
visual_size=None,
ppd=None,
shape=None,
triangle_size=None,
intensity_triangle=1.0,
intensity_background=0.0,
include_corners=True,
rotation=0.0
)
Draw a triangle
Parameters
----------
visual_size : Sequence[Number, Number], Number, or None (default)
visual size [height, width] of image, in degrees visual angle
ppd : Sequence[Number, Number], Number, or None (default)
pixels per degree [vertical, horizontal]
shape : Sequence[Number, Number], Number, or None (default)
shape [height, width] of image, in pixels
triangle_size : Number, Sequence[Number, Number]
triangle size [height width], in degrees visual angle
intensity_triangle : float, optional
intensity value for triangle, by default 1.0
intensity_background : float, optional
intensity value of background, by default 0.0
rotation : float, optional
rotation (in degrees), counterclockwise, by default 0.0
Returns
-------
dict[str, Any]
dict with the stimulus (key: "img"),
mask with integer index for the shape (key: "triangle_mask"),
and additional keys containing stimulus parameters
wedge(
visual_size=None,
ppd=None,
shape=None,
angle=None,
radius=None,
rotation=0.0,
inner_radius=0.0,
intensity_wedge=1.0,
intensity_background=0.0,
origin='mean'
)
Draw a wedge, i.e., segment of a disc
Parameters
----------
visual_size : Sequence[Number, Number], Number, or None (default)
visual size [height, width] of image, in degrees
ppd : Sequence[Number, Number], Number, or None (default)
pixels per degree [vertical, horizontal]
shape : Sequence[Number, Number], Number, or None (default)
shape [height, width] of image, in pixels
angle : float
angular-width (in degrees) of segment
radius : float
radius of disc, in degrees visual angle
rotation : float, optional
rotation (in degrees) from 3 o'clock, counterclockwise, by default 0.0
inner_radius : float, optional
inner radius (in degrees visual angle), to turn disc into a ring, by default 0
intensity_wedge : float, optional
intensity value of wedge, by default 1.0
intensity_background : float, optional
intensity value of background, by default 0.0
origin : "corner", "mean" or "center"
if "corner": set origin to upper left corner
if "mean": set origin to hypothetical image center (default)
if "center": set origin to real center (closest existing value to mean)
Returns
-------
dict[str, Any]
dict with the stimulus (key: "img"),
mask with integer index for each segment (key: "wedge_mask"),
and additional keys containing stimulus parameters
DATA
__all__ = ['rectangle', 'triangle', 'cross', 'parallelogram', 'ellipse...
FILE
/home/joris/Research/stimupy/stimupy/components/shapes.py
3.3. How stimupy is organized#
3.3.1. High-level submodules#
The stimupy library is organized into several high-level submodules,
each reflecting a different aspect of visual stimulus generation.
These include:
Components — basic building blocks such as geometric shapes, gratings, Gaussians, and lines
Noises — noise textures like binary, white, pink, brown, and narrowband noise
Stimuli — complete visual stimuli such as Gabors, plaids, Mondrians, and various visual illusions (e.g., Simultaneous Brightness Contrast, White’s illusion, Hermann grid, Ponzo illusion)
Papers — published stimulus sets which are exact replications of stimuli described in specific papers (e.g., ModelFest)
Utils — a variety of utility functions for stimulus import/export, manipulation (e.g., contrast, size, padding), exploration of parameter spaces, plotting, etc
You can import entire submodules via, e.g.:
from stimupy import stimuli
3.3.2. Low-level submodules (sub-submodules)#
stimupy is further subdivided into many lower-level submodules.
The structure of these submodules reflects scientific conventions and conceptual similarities
rather than strict software engineering practices.
This means that stimuli are grouped with others that look similar or are conceptually related,
even if they don’t share underlying code (although these two criteria can overlap, of course).
All submodule names are pluralized –
for example, sbcs for Simultaneous Brightness ContrastS,
and cubes for cube illusions.
This naming avoids namespace conflicts:
from stimupy.stimuli import cubesrefers to thecubessubmodule ofstimulifrom stimupy.stimuli.cubes import cuberefers to a specific function of the sub-submodulecubes
Pluralized names also hint that a given category may contain multiple variations or implementations.
3.3.3. Multiple Approaches to the Same Stimulus#
All roads lead to Rome, and many ways lead to the same stimulus.
Many stimupy stimuli can be constructed in more than one way,
reflecting different visual or geometric interpretations.
For example, the Todorovic Illusion can be seen either as:
a rectangle occluded by covers (
todorovics.rectangle), ora cross-shaped target with adjacent squares (
todorovics.cross)
For some parameters, these two views may produce visually identical images. However, when parameters change, their behaviors diverge – demonstrating how interpretation shapes construction.
For more detail, see ./stimuli_parametrizations.
To explore how different functions behave, we recommend trying the interactive demos.
3.3.4. The philosophy behind components vs. stimuli#
You might ask: What’s the difference between a component and a stimulus?
Truthfully, the line is not always clear.
Conceptually, every component could be used as a stimulus, and vice versa.
However, the distinction reflects a guiding principle of stimupys modularity:
componentscan be considered as atomic elements – reusable functions that serve as building blocks across many different stimulus functionsstimuliare typically higher-level constructs, often featuring target regions and providingtarget_masksfor region-specific analysis or manipulation
This modular structure allows for easy addition of entirely new stimulus functions or stimulus variations.
But do not worry. If this differentiation is not useful to you,
all components are also imported directly via the stimuli namespace, such that:
from stimupy.stimuli import ponzos, shapes
This flexibility supports both modular use and simplified workflows.
