todorovic_benary3_4

todorovic_benary3_4#

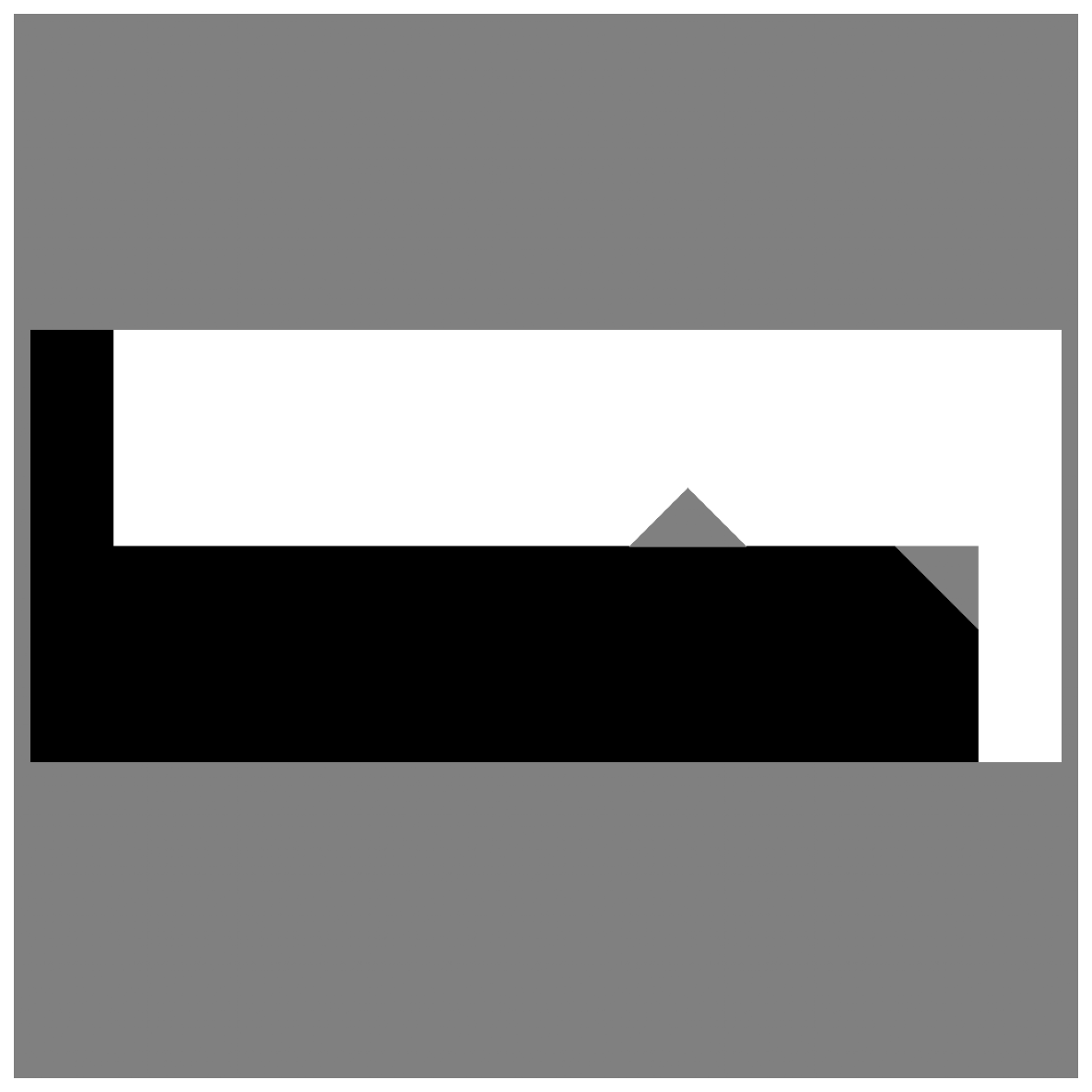

todorovic_benary3_4 stimulus example
stimupy.papers.RHS2007.todorovic_benary3_4(ppd=PPD, pad=True)#

Todorovic variation of Benarys cross as shown in Robinson, Hammon, & de Sa (2007) Fig 1z. Only contains the last two targets (3-4).

Parameters:

  • ppd (int) – Resolution of stimulus in pixels per degree. (default: 32)

  • pad (bool) – If True, include padding to 32x32 deg (default: True)

Returns:

dict with the stimulus (key: “img”) and target mask (key: “target_mask”) and additional keys containing stimulus parameters

Return type:

dict of str

References

Blakeslee, B., & McCourt, M. E. (2001).

A multiscale spatial filtering account of the Wertheimer-Benary effect and the corrugated Mondrian. Vision Research, 41, 2487-2502.

Todorovic, D. (1997).

Lightness and junctions. Perception, 26, 379-395.
